AUTOOL SDT205 Car Smoke Leak Detector

AUTOOL SDT 205 Car Smoke Leak Detector is a professional auto pipe leak detect tool. It will help us position cars motorcycles leakage on the pipe systems quickly and exactly, such as fuel pipe, air Intake system, exhaust system, and cooling tank.

AUTOOL SDT 205 Car Smoke Leak Detector Features:
1. Wide Range of Applications: For detecting the leakage of pipe systems on cars, motorcycles, snowmobiles, off-road vehicles, ATVs, light trucks and speedboats boats. Suitable for all car models.

2.Powerful and Easy to Operate : The AUTOOL SDT 205 has its own Air Pump without relying on other machines and Pressure Gauge with precise scales. Simply connect the detector with the DC12V battery, it can output thick smoke within 30s after turning on.

3. Independently Switch Design: It works on the EVAP system. Provided with another version that specially designed for EVAP system. Equipped with dual flowmeters for accurate data display & Independently controlled Air mode and Smoke mode.

4.[Safety]: This smoke detector has an intelligent protector, if it exceeds the working limit, such as over 75 ℃, it will automatically turn off the power to secure the safety of both the operator and device.



1.When you use this AUTOOL SDT 205 Car Smoke Leak Detector for the first time, fill with 20ml oil . Please be careful NOT to beyond this range.
2.The testing liquid : both liquid paraffin and baby oil are OK.
3.Fresh oil can be filled with only when the smoke gets thin, and it can’t be filled over 20ml each time.
4.Before filling fresh oil, please pour out the left oil in the detector & replace the detector oil regularly.
5.During the process of leak detection, please keep away from smoke-sensitive parts.
6.Do NOT run the detector over 8 minutes continuously. It needs interval rest.
7.The detector has an intelligent protector, if it exceeds the working limit, such as over 75 ℃, it will automatically turn off the power. In this case, please operate it later.
8.The round part of this detector has temperature, please be careful to avoid burns.
9.If the test pipe needs to be disconnected in the middle, please secure the other side with a rubber stopple.

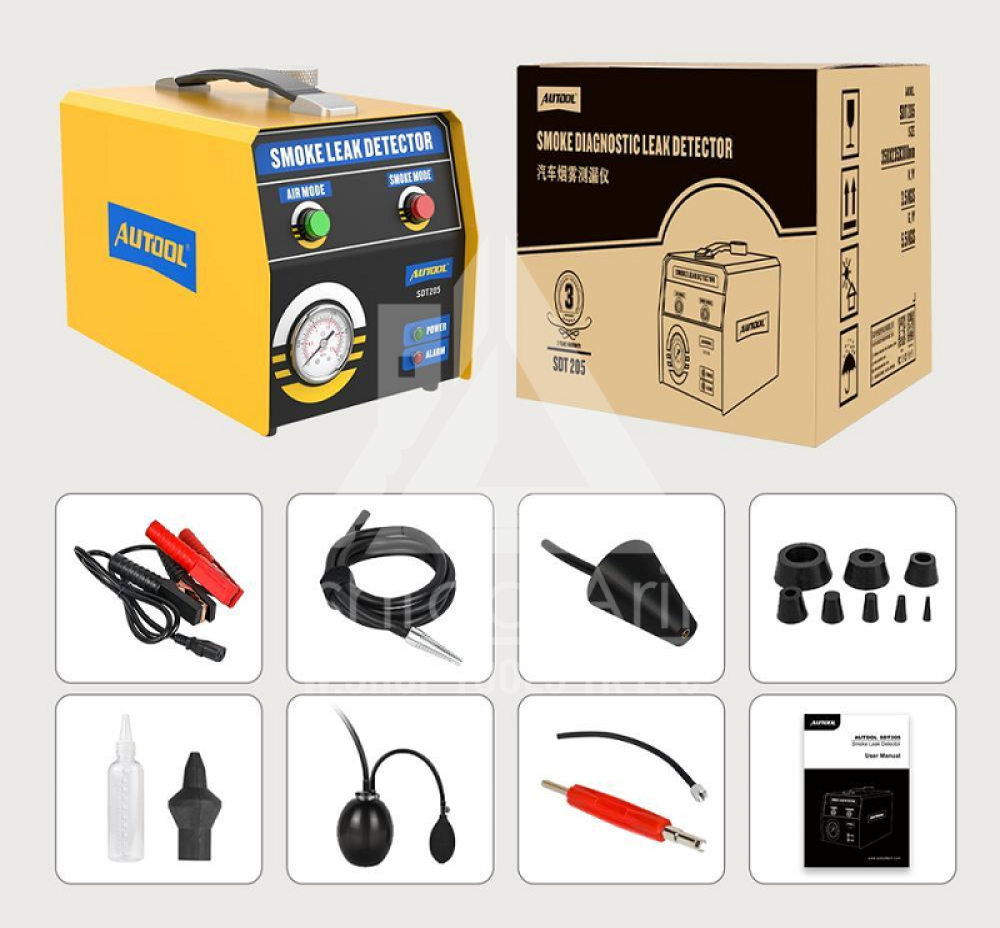

Package Includes:
1* AUTOOL SDT205 Car Smoke Leak Detector Main Unit
1* Power Cord Clamp
1* Smoke hose
1* Standard Cone adapter
1* Hard rubber kits
1* 30ml Test oil refill bottle
1* Valve Cord wrench
1* Universal airbag adapter
1* EVAP special connector
1* User manual
