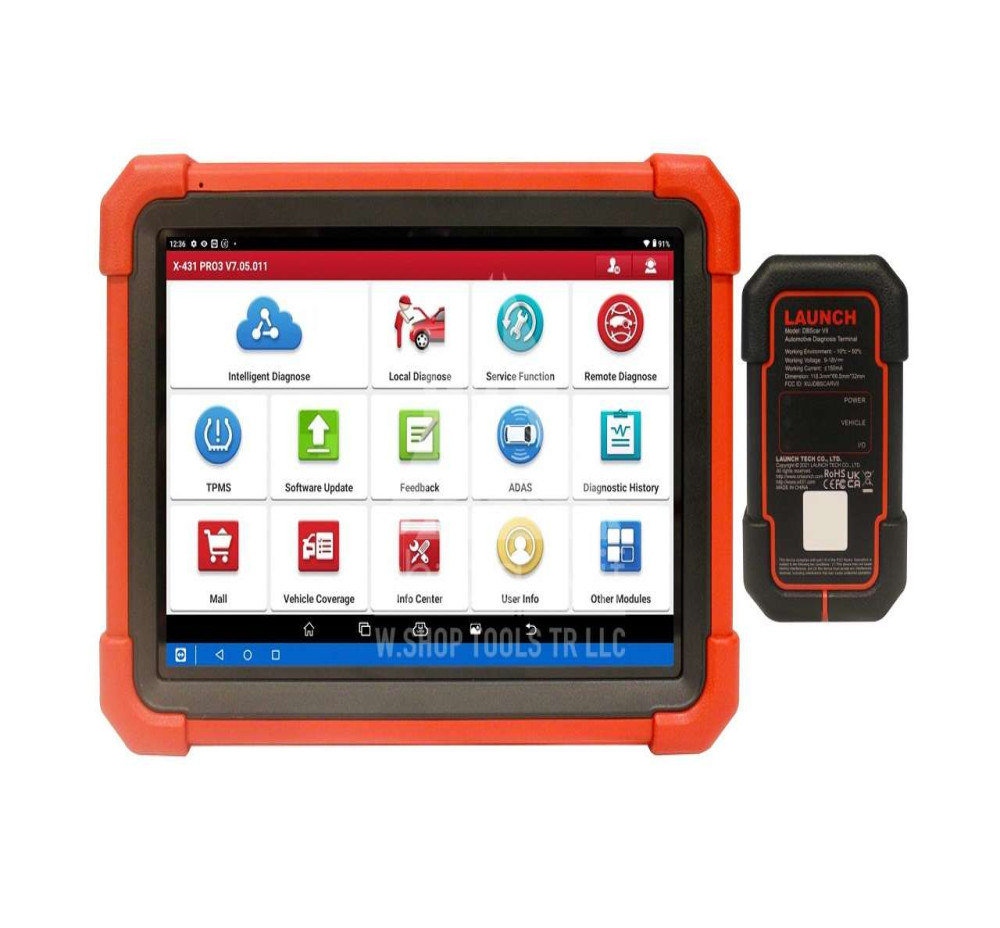

New design with DoIP/CAN FD functions, the X-431 PRO V5.0 will be the best choice for entry-level technicians.
Upgraded Android 10.0 operation system,
4GB memory and 64GB storage ensure faster and smooth diagnosis.
Brand new designed VCI supports even more communication protocols, e.g., CAN, CAN FD, DoIP*, etc. (*Need an extra DoIP cable)
Wireless communication offers flexible and easy connections for diagnostics, while a cabled connection offers a fast and stable connection for advanced work like coding.
17 advanced service functions satisfy more diagnostic demands.
Full system OE-Level diagnostics in 1996 and newer U.S., European and Asian vehicles
Full diagnostic functionality includes comprehensive OBD II diagnostics, read/clear DTCs, bi-directional control, remote diagnosis, live data streaming, coding, etc.
Optional ADAS calibration capability for calibrating LDW, RCW, AVM, NV, BSD and ACC system with the X-431 ADAS calibration tools.
Expand diagnostic coverage via “Mall”.
One-stop Info Center includes vehicle repair information and latest updates.
Review the previous diagnostic report via the Diagnostic History.
Service Functions available in the device:
Oil Maintenance Reset
Steering Angle Reset
Electronic Throttle Relearn
TPMS Reset Database
Crank Position Sensor Adaptive Learning
Display 8″, 1280*800
CPU 2.0GHz, Quad-Core
Battery 47.88Wh (7.6V, 6300mAh)
Camera Rear 8MP
Dimension 234*166*39.5 mm
Interface TYPE A*1 & TYPE C*1
Full vehicle system diagnosis, coverage for abundant US, Asian and European makes and models
Automatically identify VIN upon connection to the vehicle for intelligent diagnosis
17 special functions for the main brands
Remote diagnosis allowing you to work on a vehicle from your tool without being on-site
Read all DTC types for full system, view, graph and record data PIDs, support bi-directional controls, actuation test and all other diagnostic function
Compatible with immobilizer and Wi-Fi printer module
Integrated database with comprehensive vehicle service and repair information
Diagnostic records and reports can be stored in the cloud without any concern of data missing
One-click upgrade and silent install of software
